Description
Flagship punch in the CORE lineup—the CELTO C2.20 unleashes 2x 1200W 8Ω / 2x 2000W 4Ω via advanced Class TD topology for superior efficiency. Engineered for high-output installations and touring systems needing authoritative drive without compromise. Same proven protection and preamp circuit as siblings, now with even greater thermal stability. Linear toroidal PSU and copper heatsink cooling handle sustained high power effortlessly. Full NEUTRIK connectivity and flexible operating modes make integration seamless. At 19.5 kg, it's the heavyweight champion that still fits standard racks. The C2.20 delivers the kind of power that makes speakers thank you—and audiences stay longer.
Key Features
- 2× 1200W 8Ω / 2x 2000W 4Ω With bridge mode 1x 4000W 8Ω
- Advanced Class TD topology (82% efficiency) for superior power delivery
- High slew rate (>30 V/µs) and damping (>500) for dynamic, accurate reproduction
- Full protection suite and PeakStop Opto-Limiter for worry-free operation
- Temperature-regulated fans with copper heatsink for reliable high-output use
Applications
Installation
Sound Architecture
Portable
Professional sound, on demand
Technical specifications
| Channels | 2 |
| RMS Power 8Ω (per ch., EIA 1 kHz 1% THD) | 1200W |
| RMS Power 4Ω (per ch.) | 2000W |
| RMS Power 2Ω (per ch.) | Not recommended |
| Bridge 8Ω | 1x 4000W |
| Bridge 4Ω | Not recommended |
| Frequency Response (-1 dB) | 20 – 20 000 Hz |
| Typical THD | < 0.1 % |
| Signal to Noise Ratio (A-weighted) | 108 dB |
| Crosstalk (1 kHz) | > 65 dB |
| Slew Rate | > 30 V/µs |
| Damping Factor (8Ω) | > 500 (internal) |
| Voltage Gain | 42dB (126 times voltage) |
| Input Impedance | 20 kΩ balanced |
| Preamp | Low noise and low distortion circuit with PeakStop Opto-Limiter |
| Output Stage / Class | Class TD (82% efficiency) |
| Power Supply | Linear topology with toroidal transforner |
| Cooling | Temperature regulated long life brush-less fans, front to back airflow |

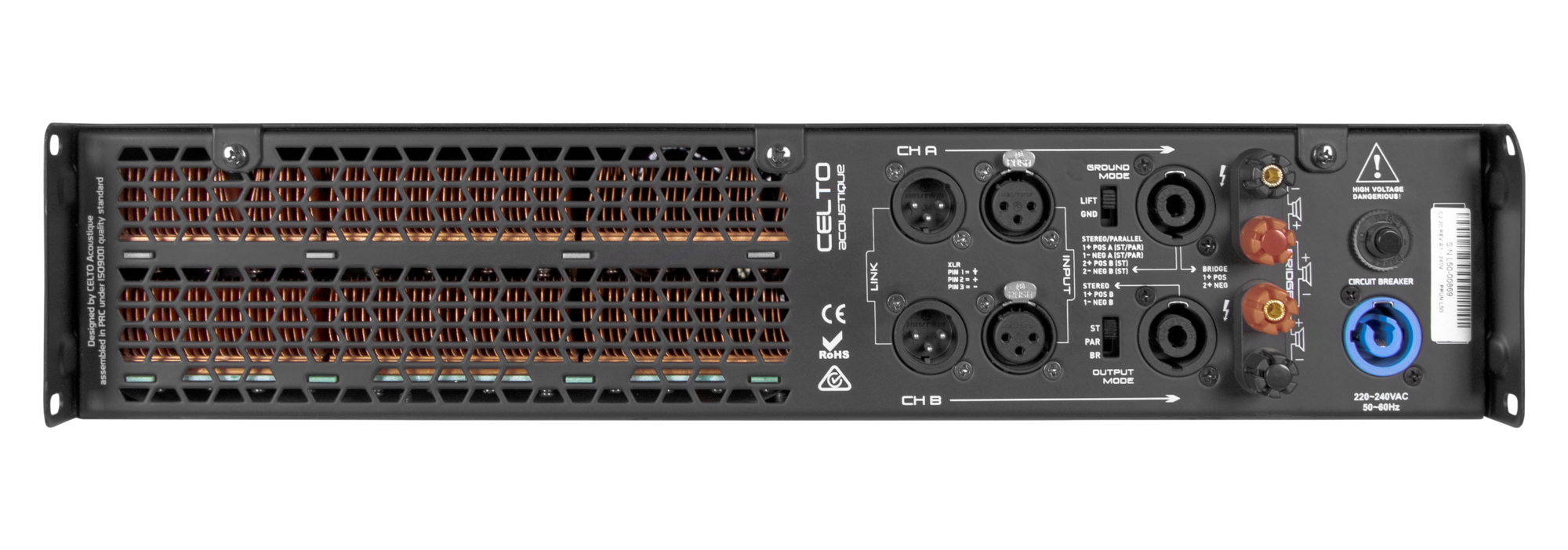

| Power Connector | SEETRONIC PowerCon |
| Input Connectors | 2x NEUTRIK XLR + 2x NEUTRIK XLR Link |
| Output Connectors | 2x NEUTRIK Speakon NL4 + 2x speaker Binding post terminals |
| Dimensions (W×H×D) mm | 483×88×378 (2U) |
| Weight Net | 19.5 kg |
| series shortname | cseries |
