iFIX10 FR

Compact Might. Full Authority.

Installation Point source speakers iFIX

Where to buy

Description

Big sound in a remarkably compact package—the CELTO iFIX10 FR delivers a genuine 300W RMS with audiophile-grade clarity and impact. This high-output coaxial loudspeaker is engineered for near-field main PA reinforcement, paired with a subwoofer for an extra low extension. Ideal for trendy nightclubs, multifunctional venues, pubs, restaurants, auditoriums, theatres, and foreground music applications. Featuring a next-generation 10" coaxial driver with HSP annular ring radiator HF for extraordinary efficiency and tonal precision. Audiophile crossover with Right-Phase topology ensures flawless phase coherence and immersive spatial imaging. Crafted from premium birch plywood, available in black, white, natural oak, or custom RAL finishes for seamless integration. Multi-function yoke with dented ring included for precise and secure mounting angles. With 97 dB sensitivity and a staggering 128 dB peak SPL, it defies its size with effortless authority. The iFIX10 FR proves that true high-fidelity power can thrive in discreet, elegant installations without always needing a subwoofer.

Key Features

Real 300W RMS with high-end sound quality Fullrange, can be used without subwoofer
Coaxial transducer for unmatched spacial coherence
Next generation HSP Annular Ring Radiator HF
Audiophile grade crossover with Right-Phase topology
Birch plywood cabinet with smooth texture or varnish finish

Applications

Installation Sound Architecture

Technical specifications

Speaker type	FIX Install Full Range Coaxial Speaker
Power Handling (AES standard)	300 W RMS / 1200 W Peak
Nominal impedance	8Ω
Average sensitivity	97 dB / 1 W / 1 m
Maximum SPL (calculated)	122 dB RMS / 128 dB Peak
Frequency response (-6 dB no preset)	68~22000 Hz
Nominal directivity (-6 dB)	80° conical
Cabinet	Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish	Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use	No

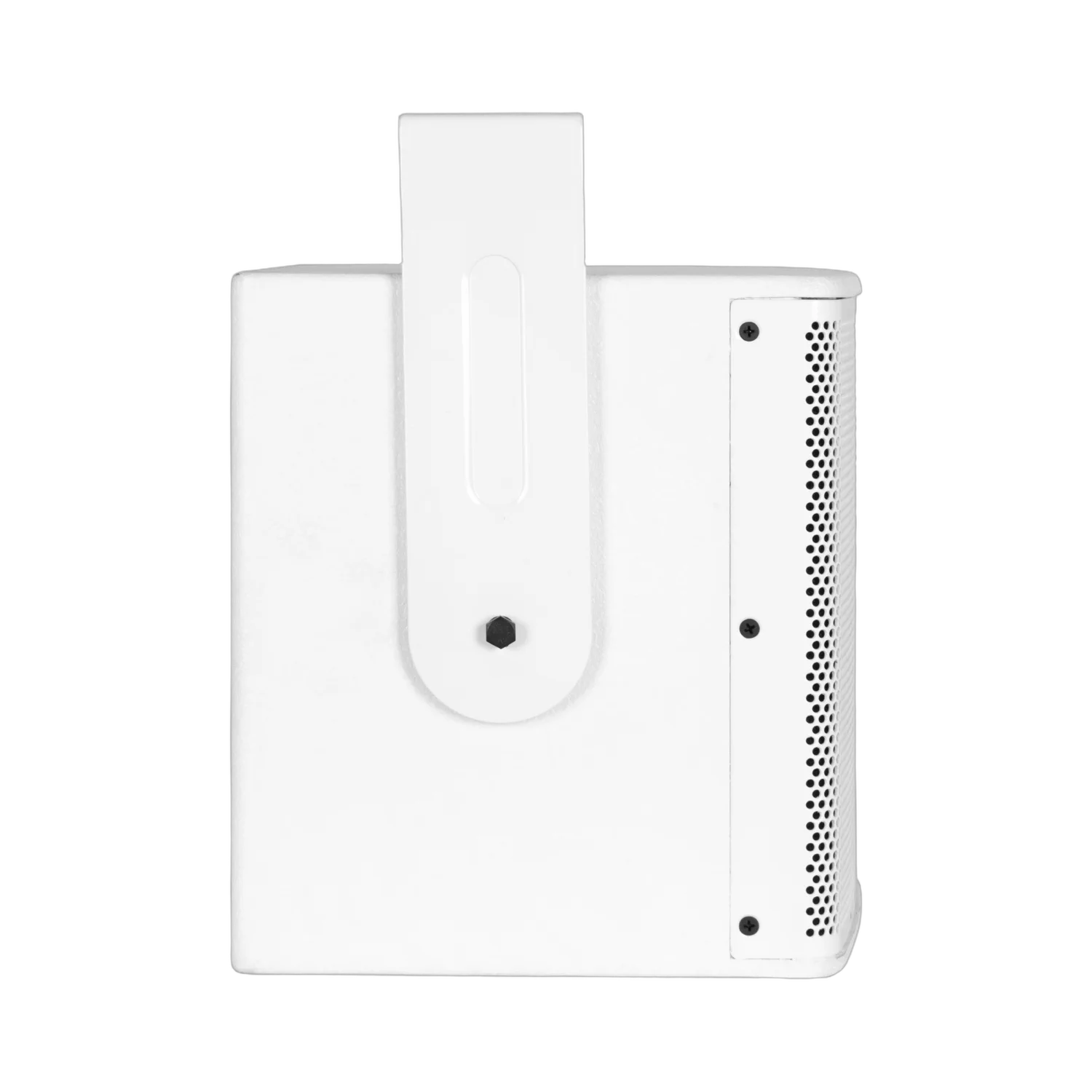

Flying hardware	Multi-function Yoke (can be mounted with screws or Eyebolt, Included in carton)
Mounting hardware	Yes for Yoke, wall mount bracket and CCA-MA
LF	10" coaxial CELTO 10CXF310
Woofer Chassis	Die Cast Aluminium
Woofer Voice coil	2.5" / 65 mm
HF	CELTO ACD40 (in coaxial mounting)
HF RMS power (AES standard)	80 W above 1.5 kHz
HF Exit	1" / 25 mm
HF Voice coil diameter	1.7" / 44 mm
HF Diaphragm	HSP Annular (High Strength Polymer)
Crossover	1.5 kHz 2-way passive network

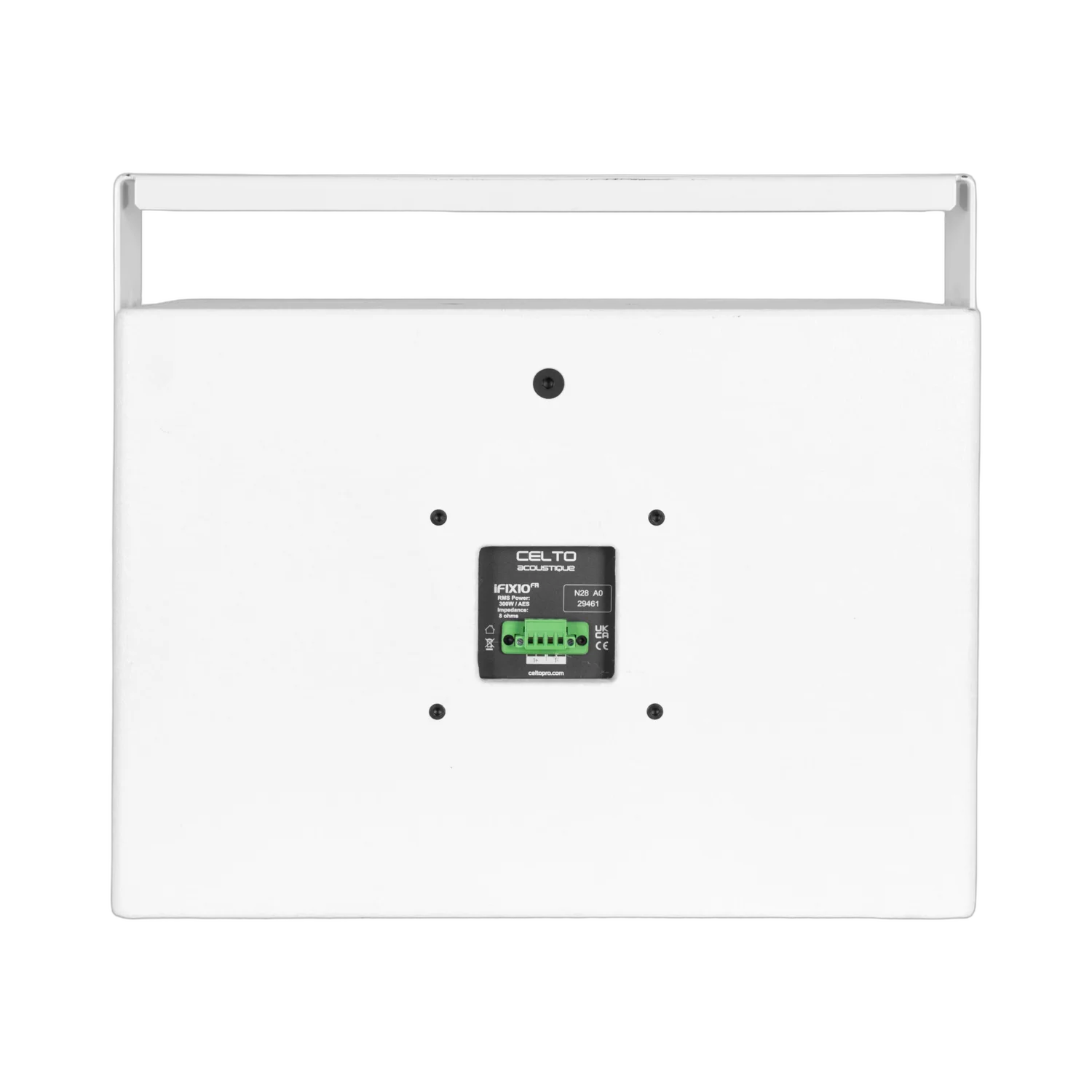

Connectivity	PHOENIX MSTBV 2.5/4-GF-5.08 4pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD)	316 x 440 x 298 mm
Speaker Weight	14.5 kg
Shipping information	19 kg 510 x 410 x 360 mm
Accessories	CCA-MA (mounting adapter) WMBRKT20 (wall mount bracket) Rust-Free Aluninum grill

Product files

Name	Category	Type	Size
CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD	CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD	PDF	52.6 KiB	Download
CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD	CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD	DWG	784.5 KiB	Download
