iFIX10 G2

Pocket Rocket. Room Wrecker.

Installation Point source speakers iFIX

Where to buy

Description

Big sound in an astonishingly small package—the CELTO iFIX10 G2 packs a serious 300W RMS for uncompromising performance. This high-output coaxial loudspeaker excels in near-field PA applications when combined with a dedicated subwoofer. Perfect for high-energy venues including nightclubs, bars, restaurants, theatres, auditoriums, and foreground music systems. Next-generation 10" coaxial driver with HSP annular ring radiator HF delivers extraordinary efficiency and tonal accuracy. Audiophile crossover with Right-Phase topology provides flawless phase coherence and wide, even coverage. Premium birch plywood construction available in black, white, natural, or custom RAL finishes for discreet integration. Supplied with multi-function yoke for precise, secure installation angles. Achieving 97 dB sensitivity and a staggering 128 dB peak SPL, it redefines expectations for compact installations. When you need authoritative sound without dominating the room visually, the iFIX10 G2 is the sophisticated choice.

Key Features

Real 300W RMS with high-end sound quality
High Efficiency for incredible SPL to Size ratio
Coaxial transducer for unmatched spacial coherence
Next generation HSP Annular Ring Radiator HF
Audiophile grade crossover with Right-Phase topology

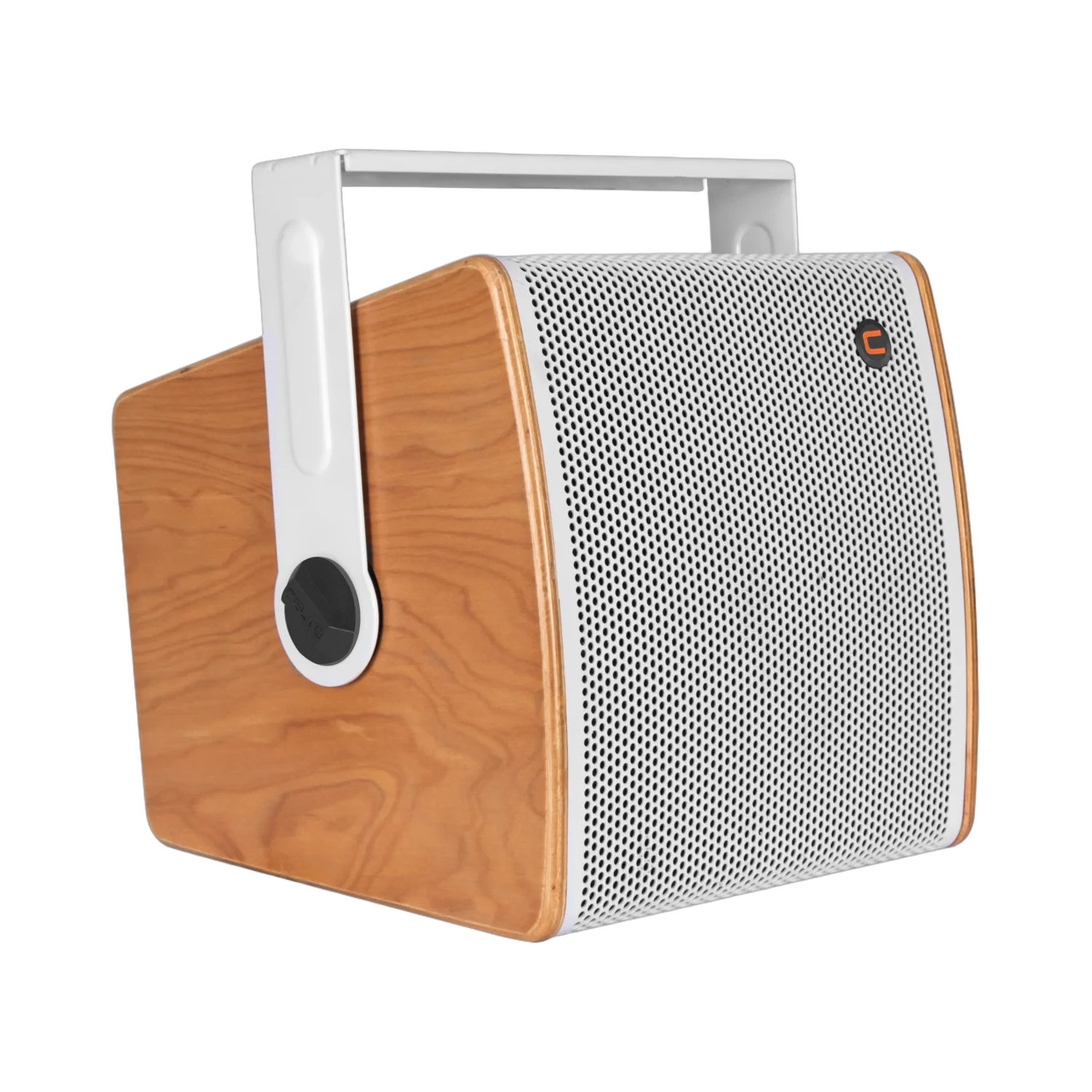

Birch plywood cabinet with smooth texture or varnish finish

Applications

Installation Sound Architecture

Technical specifications

Speaker type	FIX Install Full Range Coaxial Speaker
Power Handling (AES standard)	300 W RMS / 1200 W Peak
Nominal impedance	8Ω
Average sensitivity	97 dB / 1 W / 1 m
Maximum SPL (calculated)	122 dB RMS / 128 dB Peak
Frequency response (-6 dB no preset)	95~22000 Hz
Nominal directivity (-6 dB)	80° conical
Cabinet	Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish	Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use	No
Flying hardware	Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton)
Mounting hardware	Yes for Yoke, wall mount bracket and CCA-MA
LF	10" coaxial CELTO 10CXF310
Woofer Chassis	Die Cast Aluminium
Woofer Voice coil	2.5" / 65 mm
HF	CELTO ACD40 (in coaxial mounting)
HF RMS power (AES standard)	80 W above 1.5 kHz
HF Exit	1" / 25 mm
HF Voice coil diameter	1.7" / 44 mm
HF Diaphragm	HSP Annular (High Strength Polymer)
Crossover	1.5 kHz 2-way passive network

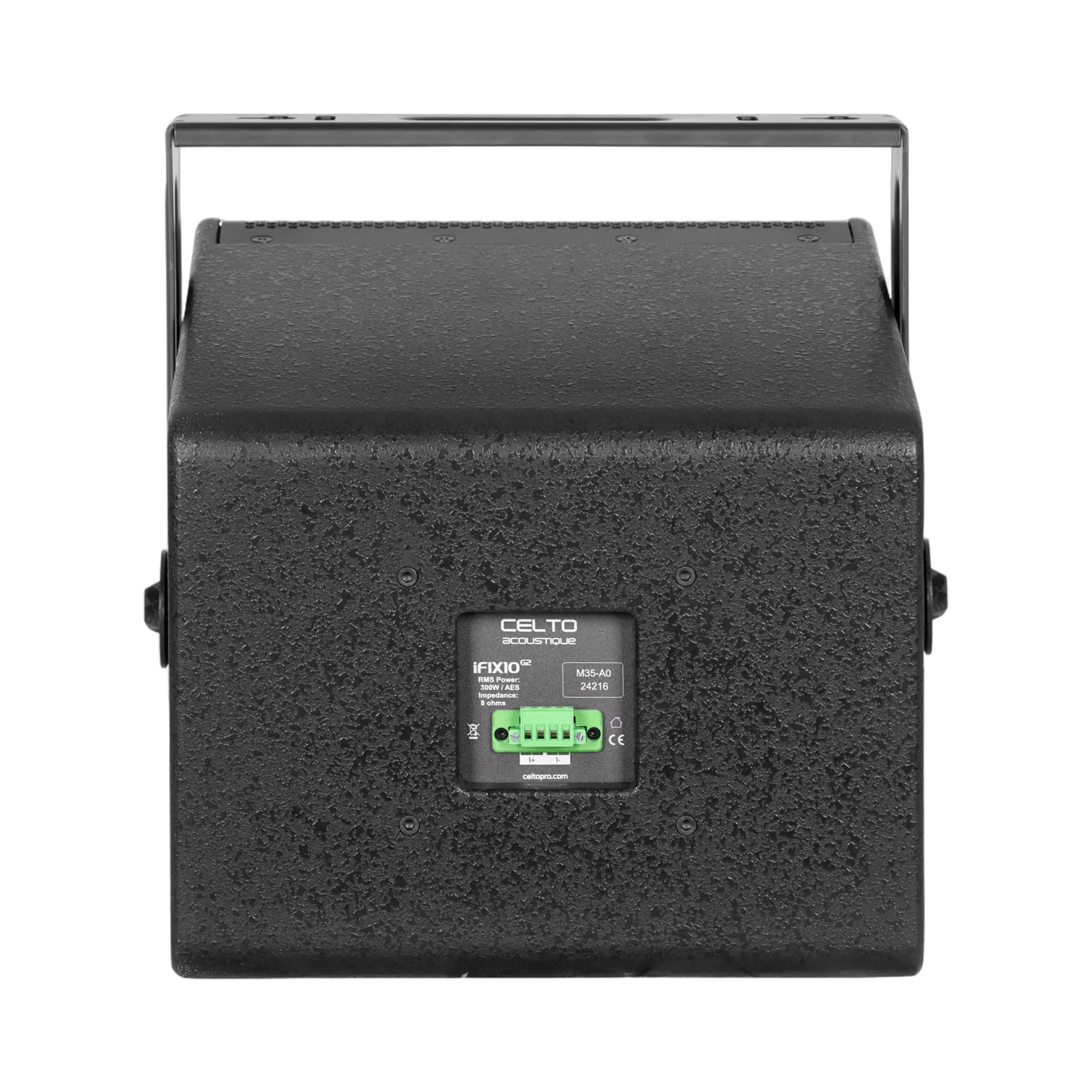

Connectivity	PHOENIX MSTBV 2.5/4-GF-5.08 4 pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD)	300 x 300 x 304 mm
Speaker Weight	12 kg
Shipping information	14 kg 410 x 380 x 440 mm
Accessories	CCA-MA (mounting adapter) WMBRKT20 (wall mount bracket) Rust-Free Aluninum grill

Product files

Name	Category	Type	Size
CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD	CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD	PDF	61.7 KiB	Download
CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD	CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD	DWG	855.9 KiB	Download
