iFIX17S G2

Commanding Lows. Controlled Space.

Installation Subwoofers iFIX

Where to buy

Description

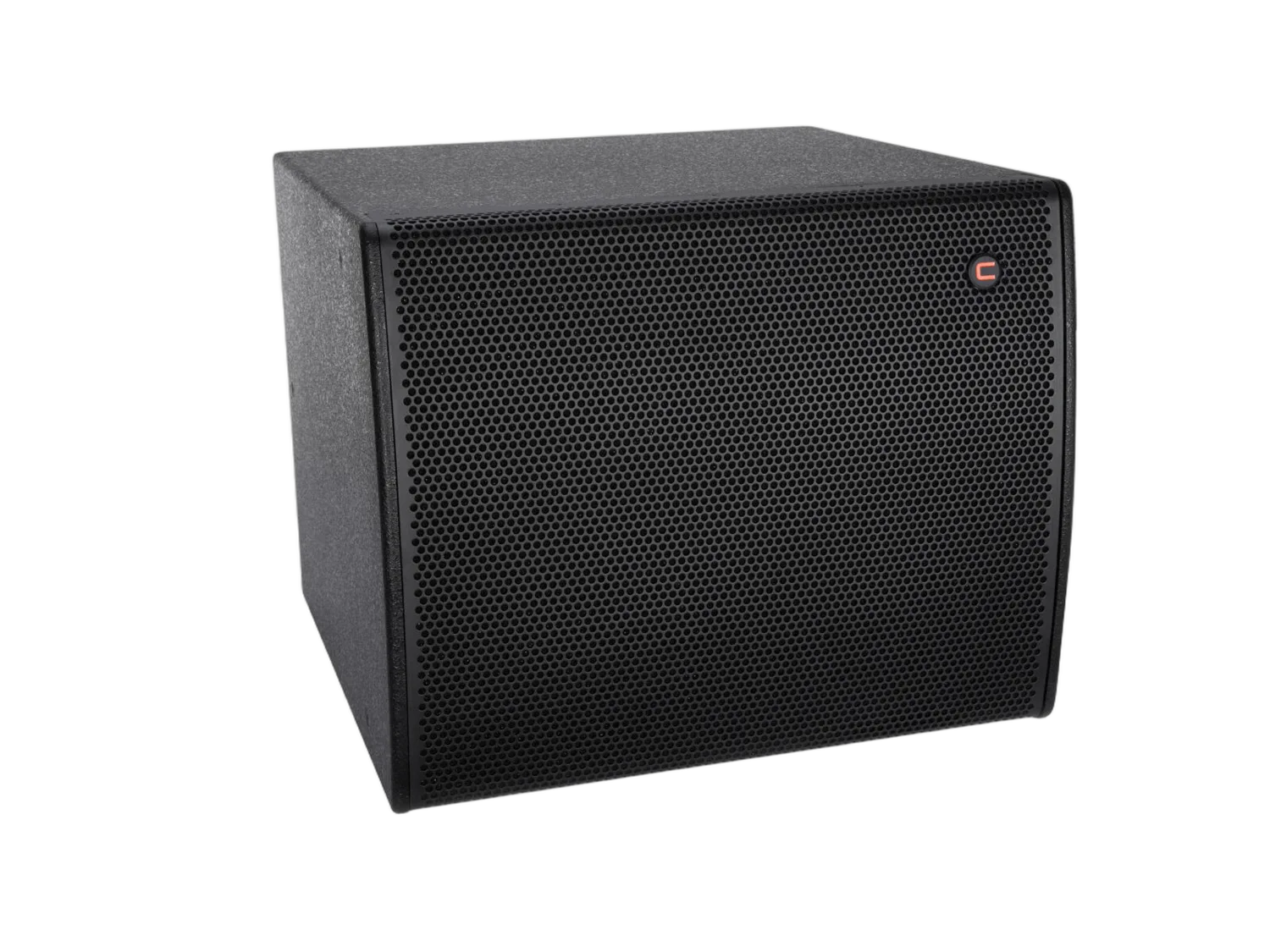

When serious bass authority is required without sacrificing space—the CELTO iFIX17S G2 delivers an imposing 1000W RMS. This compact subwoofer extends low frequencies with precision and impact for the entire iFIX series. Suited to demanding indoor and outdoor applications in nightclubs, large multifunctional venues, theatres, and high-output foreground systems. Featuring a high-performance 18" driver with trimmed chassis for an amazingly small footprint relative to its power. Ultra-high 99 dB sensitivity and 135 dB peak SPL ensure room-shaking performance with minimal amplification. Six M8 rigging points enable flexible installation options including flying or ground stacking. Robust 18 mm birch plywood cabinet finished in black, white, natural oak, or any custom color. Extending down to 38 Hz with controlled, musical response throughout its range. The iFIX17S G2 demonstrates that true sub-bass power can indeed come in a surprisingly manageable package.

Key Features

Real 1000W RMS with accurate deep tones
CELTO trimmed chassis for ultra compact format
High Efficiency for incredible SPL to Size ratio
6 M8 Flying points for added versatility

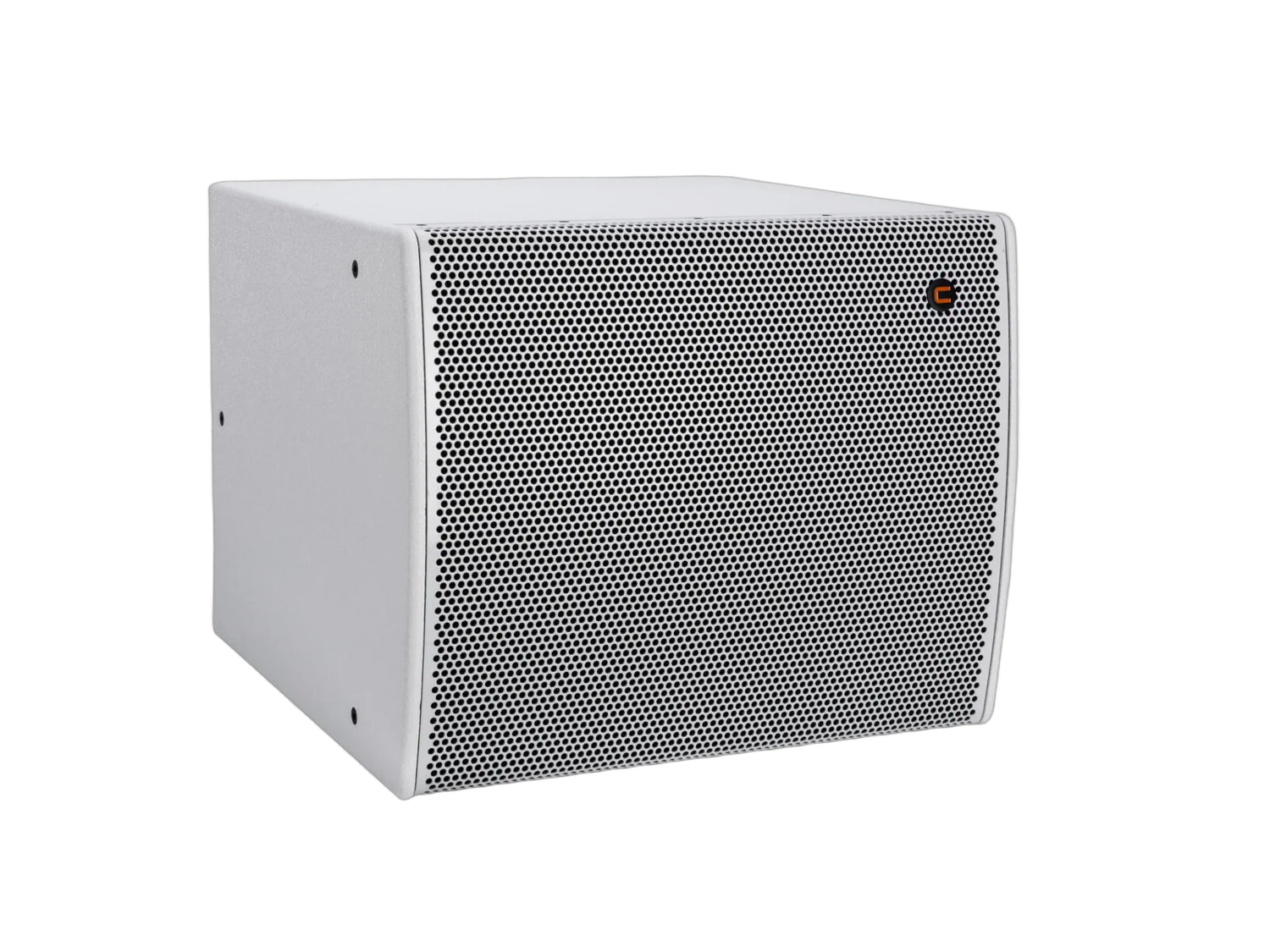

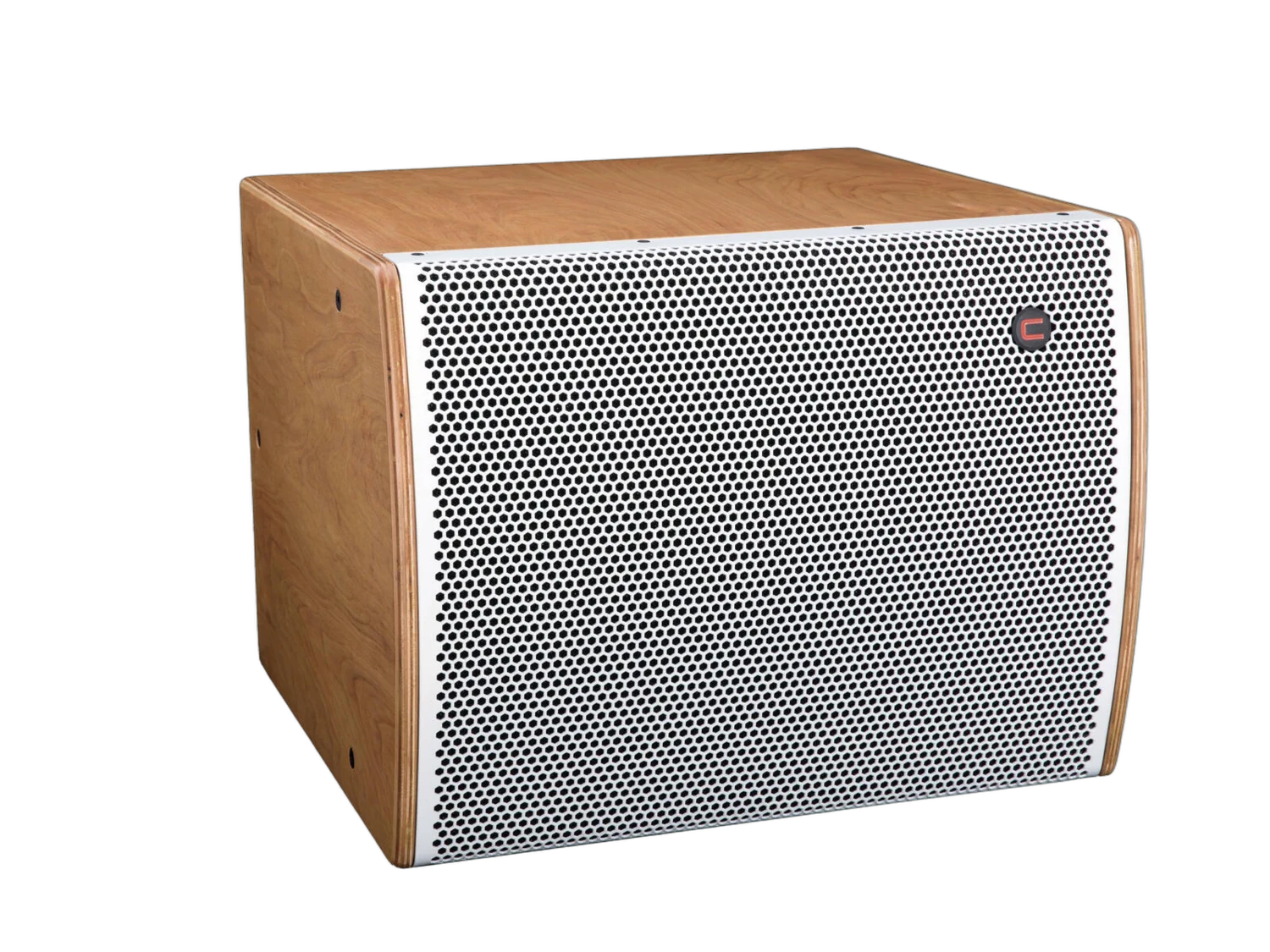

Birch plywood cabinet with smooth texture or varnish finish

Applications

Installation Sound Architecture

Technical specifications

Speaker type	Subwoofer
Power Handling (AES standard)	1000 W RMS / 4000 W Peak
Nominal impedance	8Ω
Average sensitivity	99 dB / 1 W / 1 m
Maximum SPL (calculated)	129 dB RMS / 135 dB Peak
Frequency response (-6 dB no preset)	38~1200 Hz
Nominal directivity (-6 dB)	Omni in usable range
Cabinet	Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish	Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use	No
Flying hardware	8 M8 points
Mounting hardware	No

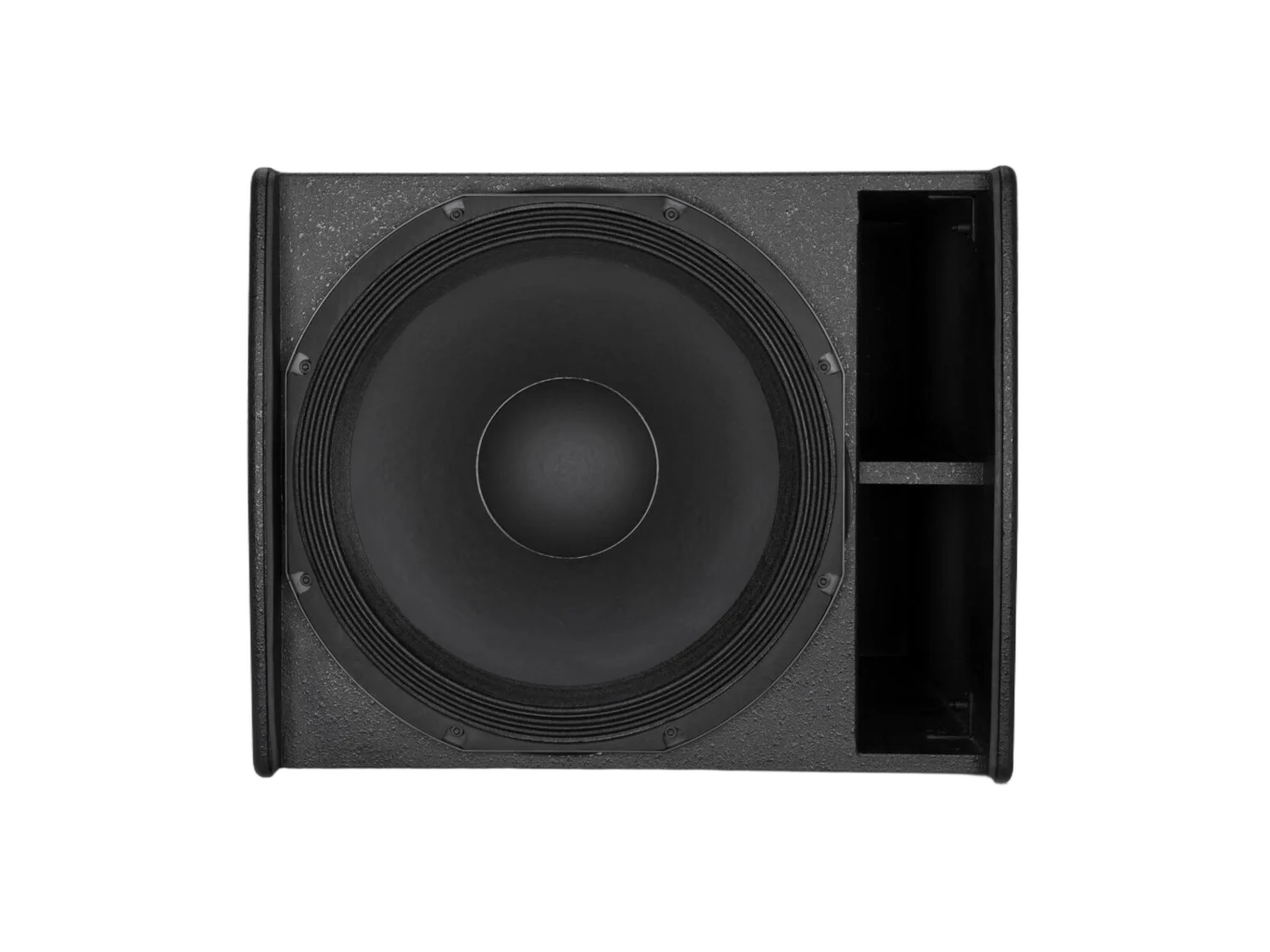

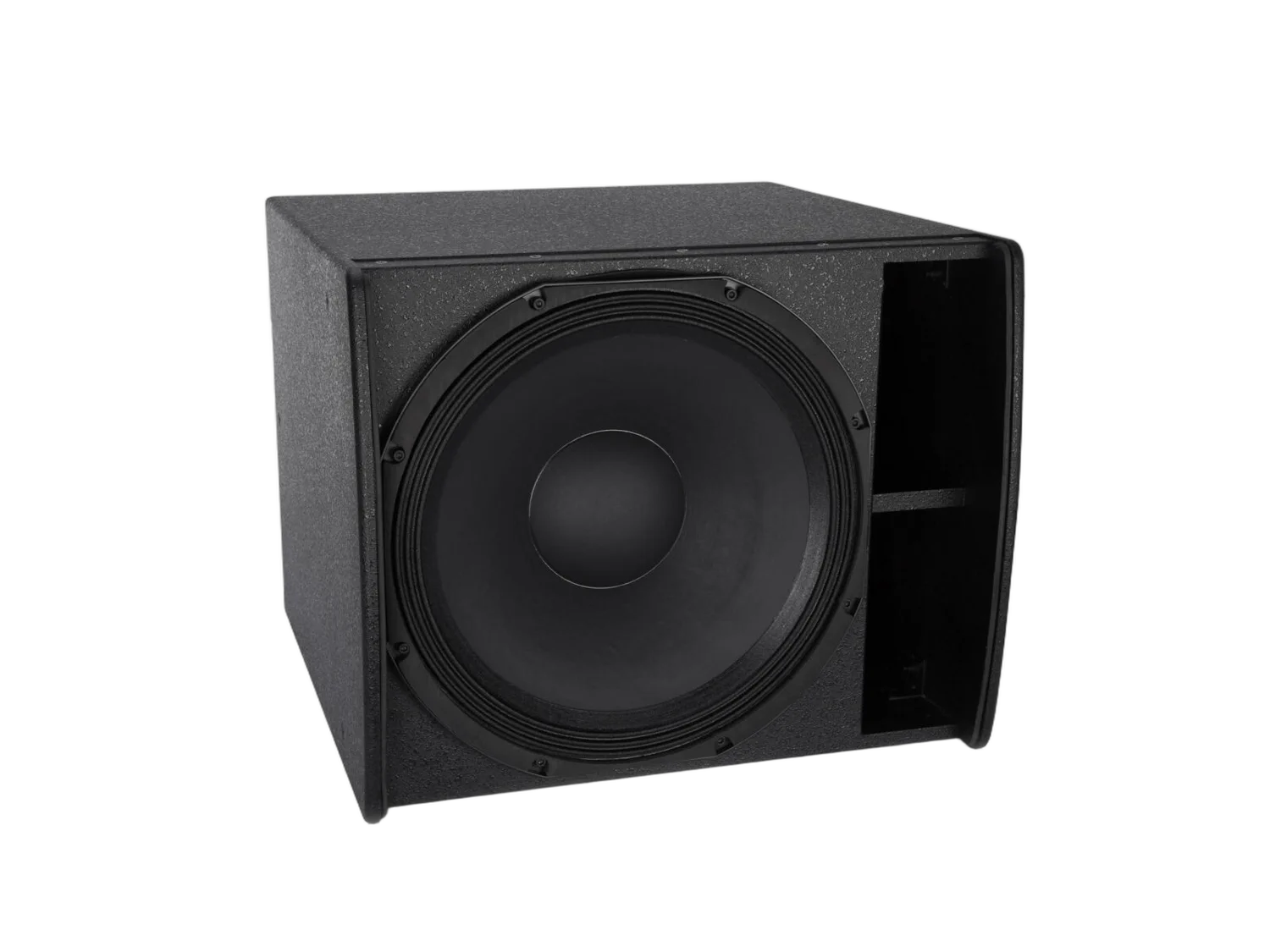

LF	18" CELTO 18SW1000-8
Woofer Chassis	Die Cast Aluminium
Woofer Voice coil	3.6" / 91 mm
HF	N / A
HF RMS power (AES standard)	N / A
HF Exit	N / A
HF Voice coil diameter	N / A
HF Diaphragm	N / A
Crossover	No, active mode only

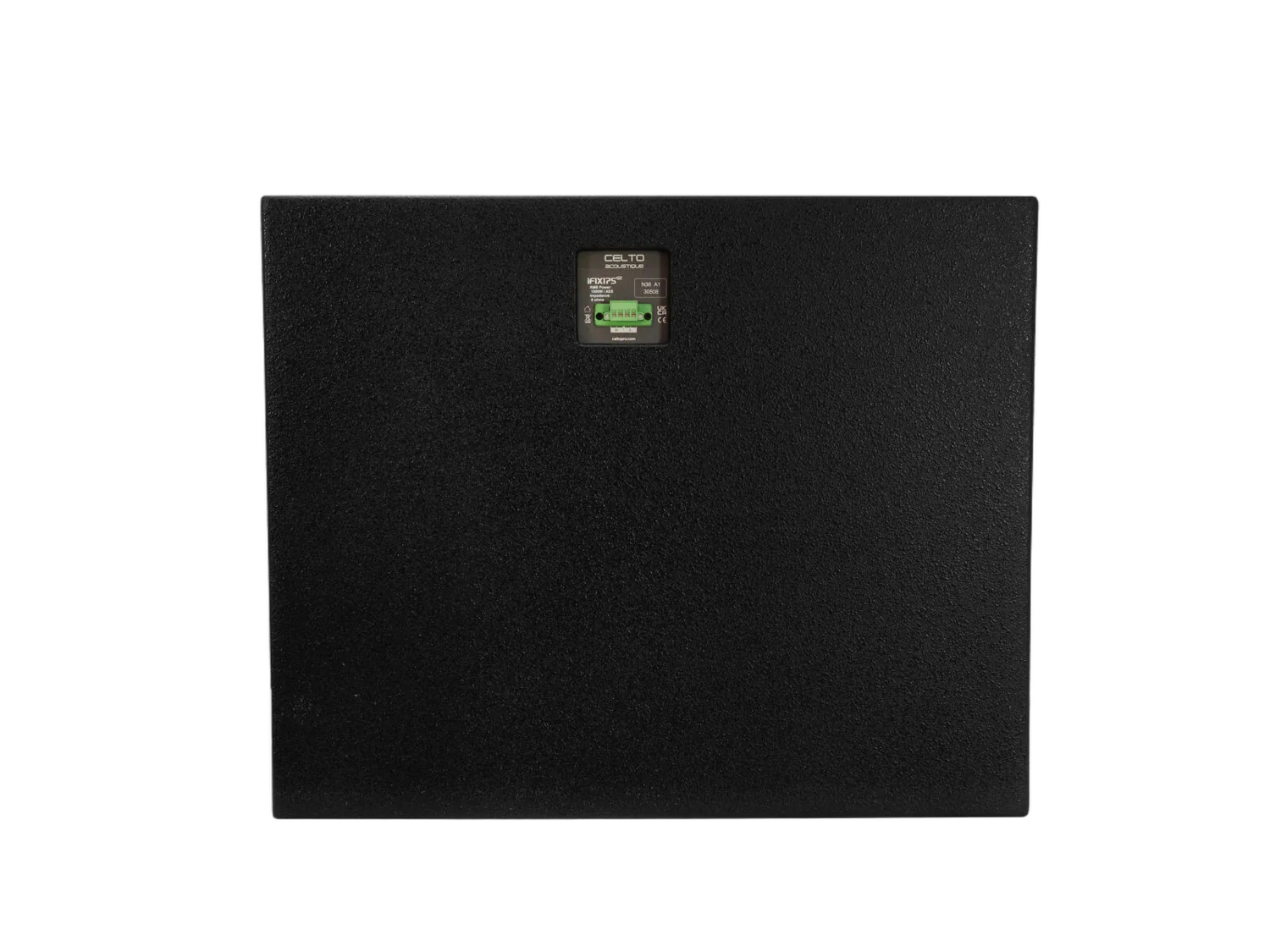

Connectivity	PHOENIX MSTBV 2.5/4-GF-5.08 4 pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD)	482 x 596 x 600 mm
Speaker Weight	32 kg net
Shipping information	38 kg 710 x 600 x 730 mm
Accessories	iFIXG2-BRKT (Installation brackets) Rust-Free Aluminum grill

Product files

Name	Category	Type	Size
CELTO_IFIX17SG2_BLK_A0_20250715_WEB_CAD CELTO_IFIX17SG2_BLK_A0_20250715_WEB_CAD	CELTO_IFIX17SG2_BLK_A0_20250715_WEB_CAD	PDF	50.2 KiB	Download
CELTO_IFIX17SG2_BLK_A0_20250715_WEB_CAD CELTO_IFIX17SG2_BLK_A0_20250715_WEB_CAD	CELTO_IFIX17SG2_BLK_A0_20250715_WEB_CAD	DWG	862.1 KiB	Download
