iFIX7 G2

Elegant Power. Audiophile Soul.

Installation Point source speakers iFIX

Where to buy

Description

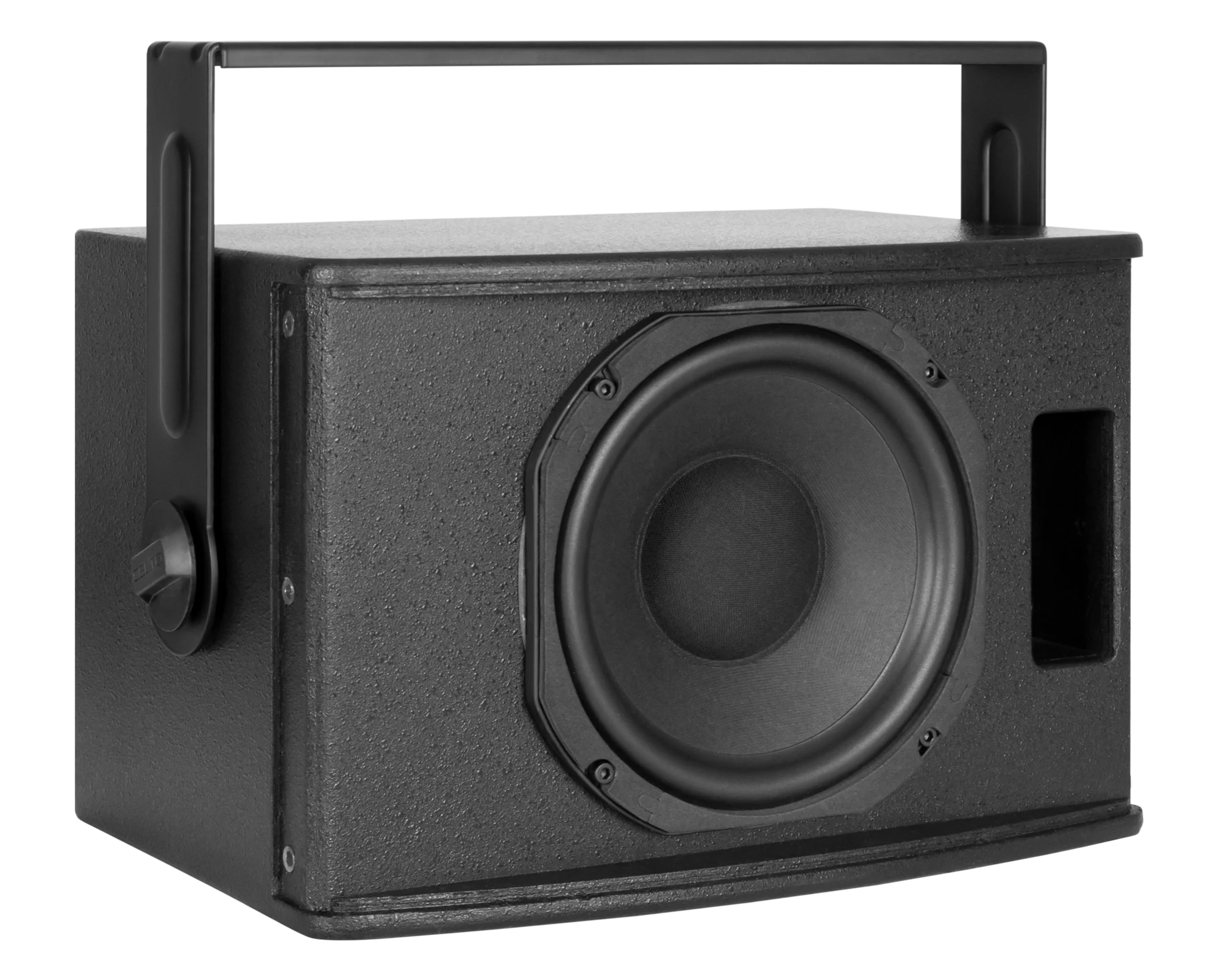

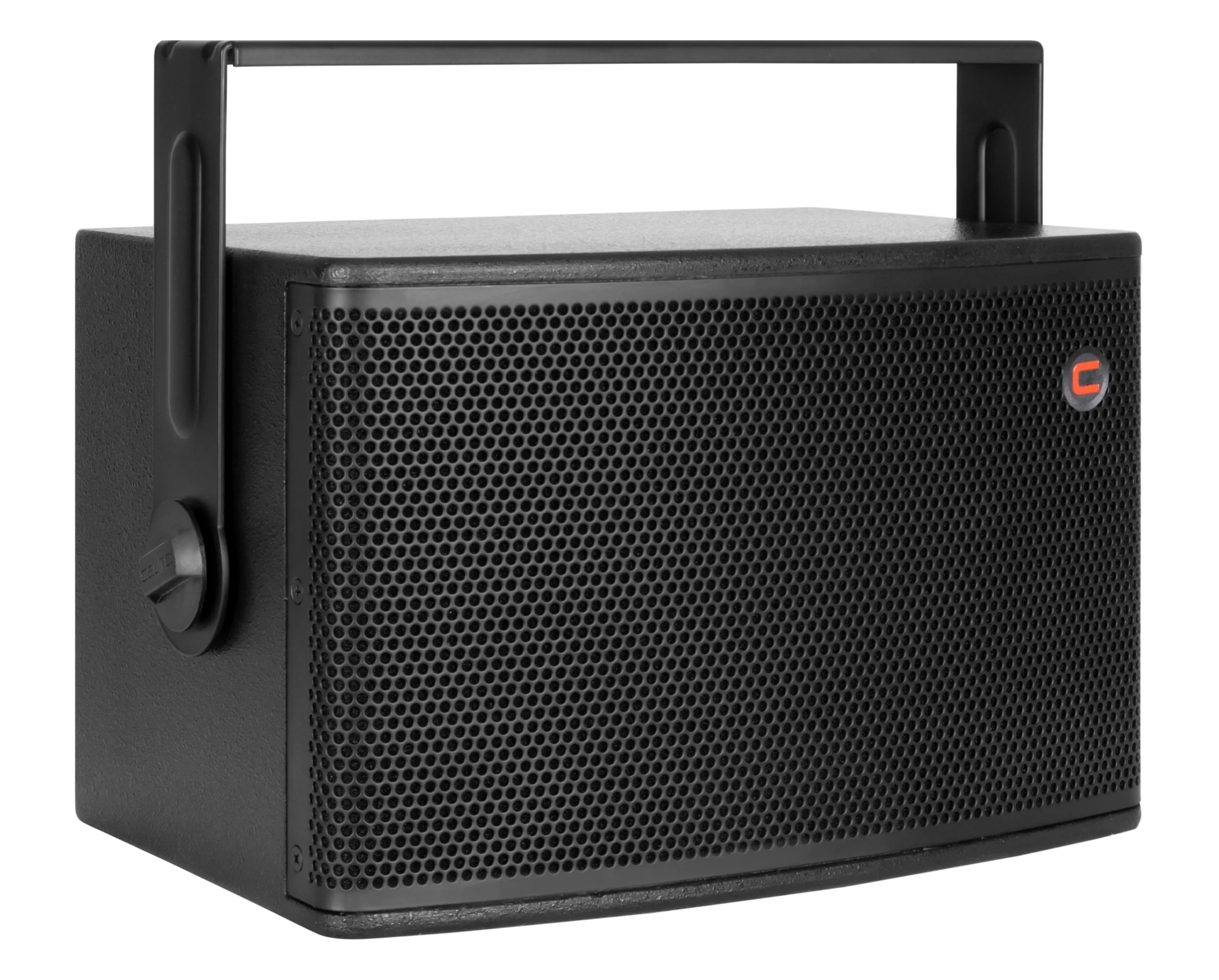

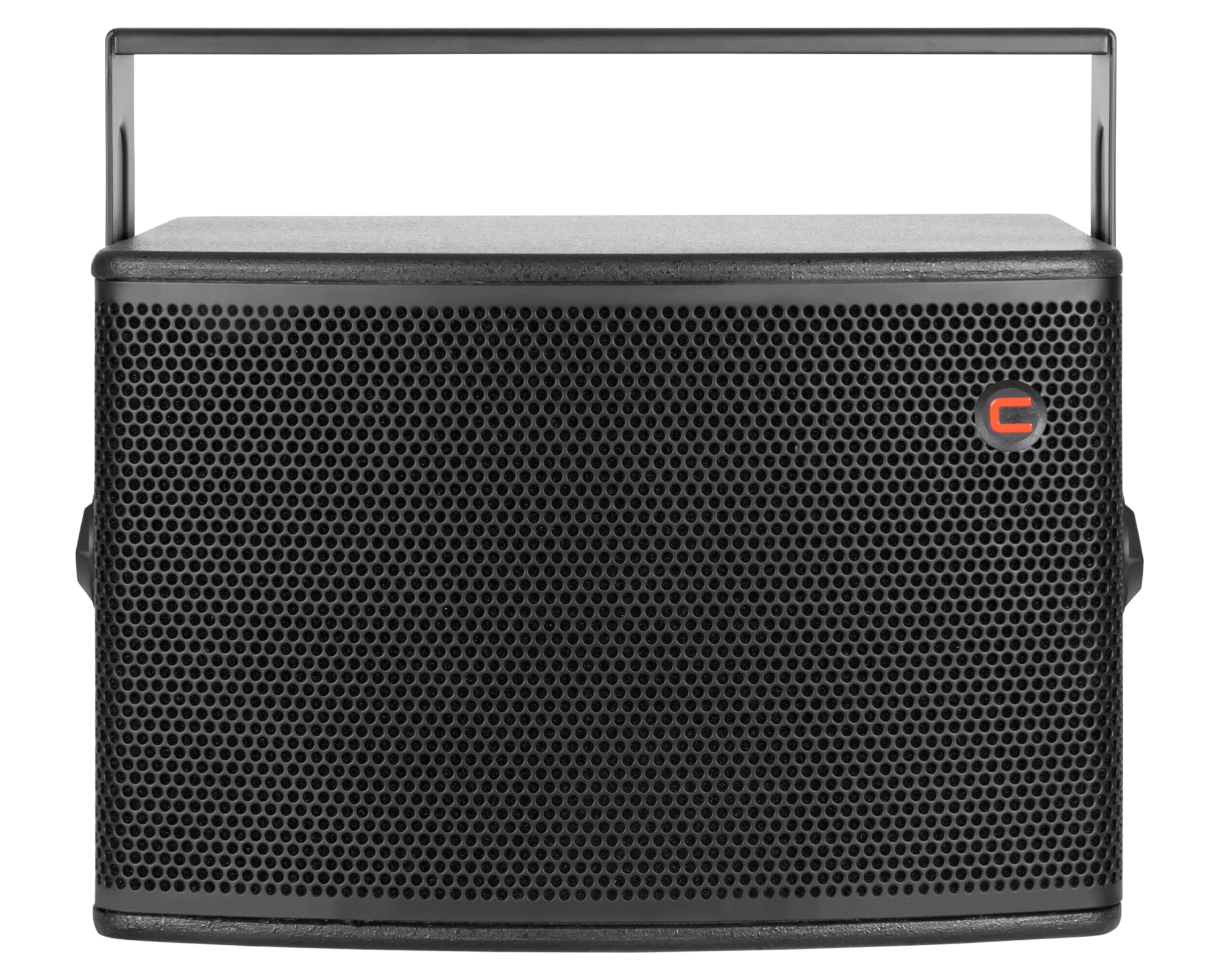

Don't let its elegant, compact form deceive you—the CELTO iFIX7 G2 unleashes a true 200W RMS with audiophile-grade refinement. This full-range coaxial speaker delivers deep, warm bass and pristine highs, ideal for standalone use or paired with a subwoofer. Tailored for demanding installations in nightclubs, bars, restaurants, multifunctional spaces, theatres, and background music systems. Its advanced 8" coaxial transducer with PEI HF dome ensures unmatched spatial coherence and natural timbre. Audiophile crossover with Right-Phase topology guarantees perfect driver alignment and phase accuracy. Crafted from 15 mm birch plywood, available in black, white, natural oak, or custom finishes for aesthetic integration. Included multi-function yoke with dented ring allows precise, secure angling. Boasting 92 dB sensitivity and 121 dB peak SPL, it fills rooms with effortless authority. From subtle ambience to energetic foreground sound, the iFIX7 G2 proves that sophistication and power can coexist beautifully.

Key Features

Real 200W RMS with high-end sound quality
Full range with deep and warm bass
Coaxial transducer for unmatched spacial coherence
HF compression driver with Ketone Polymer dome
Audiophile grade crossover with Right-Phase topology

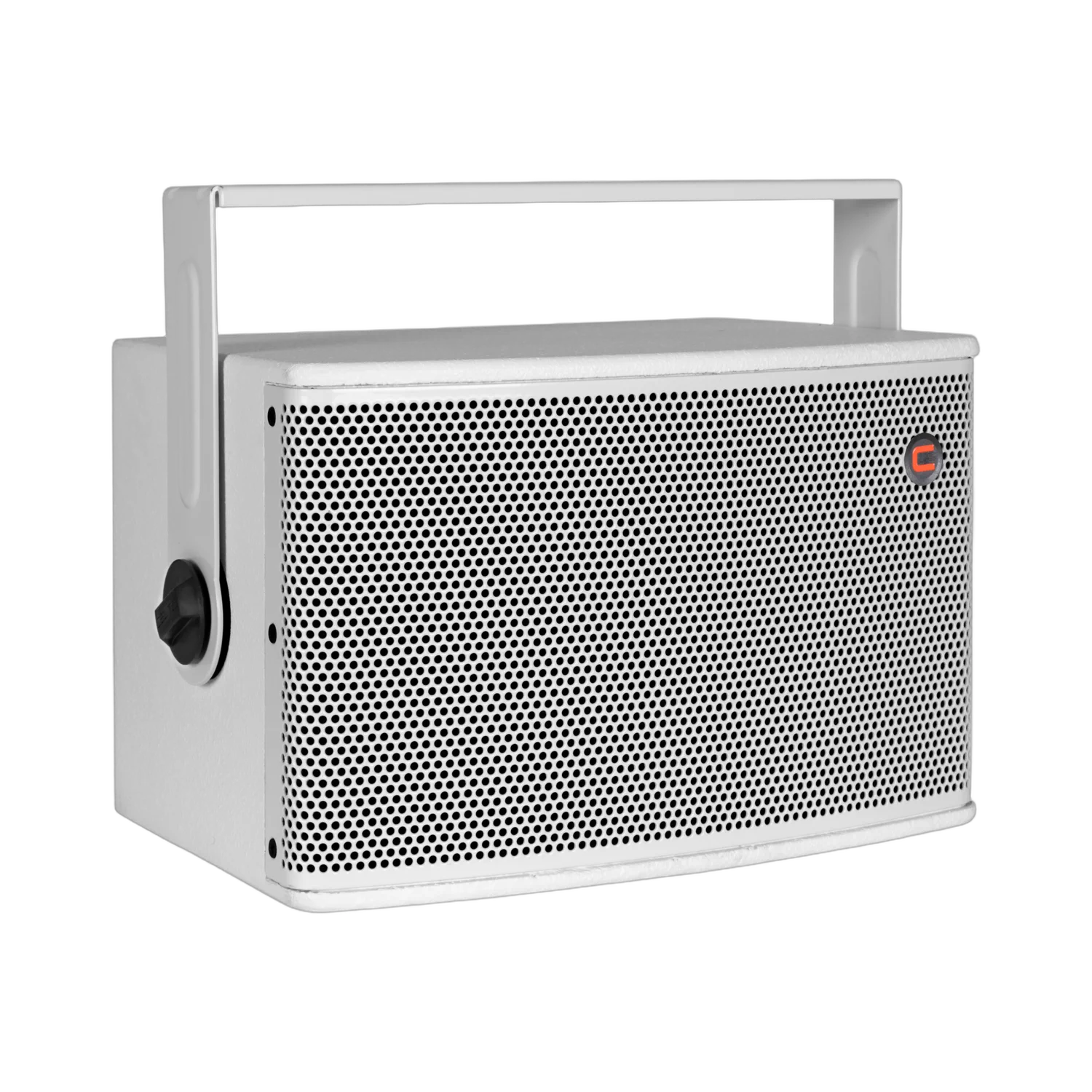

Birch plywood cabinet with smooth texture or varnish finish

Applications

Installation Sound Architecture

Technical specifications

Speaker type	FIX Install Full Range Coaxial Speaker
Power Handling (AES standard)	200 W RMS / 800 W Peak
Nominal impedance	8Ω
Average sensitivity	92 dB / 1 W / 1 m
Maximum SPL (calculated)	115 dB RMS / 121 dB Peak
Frequency response (-6 dB no preset)	52~22000 Hz
Nominal directivity (-6 dB)	80° conical
Cabinet	Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish	Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use	No
Flying hardware	Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton)
Mounting hardware	Yes for Yoke, wall mount bracket and CCA-MA
LF	8" coaxial CELTO 8CXF220
Woofer Chassis	Die Cast Aluminium
Woofer Voice coil	2" / 51 mm
HF	CELTO PCDN250 (in coaxial mounting)
HF RMS power (AES standard)	20 W above 1.5 kHz
HF Exit	0.75" / 19 mm
HF Voice coil diameter	1.1" / 28 mm
HF Diaphragm	C400 PEI dome
Crossover	2.4 kHz 2-way passive network

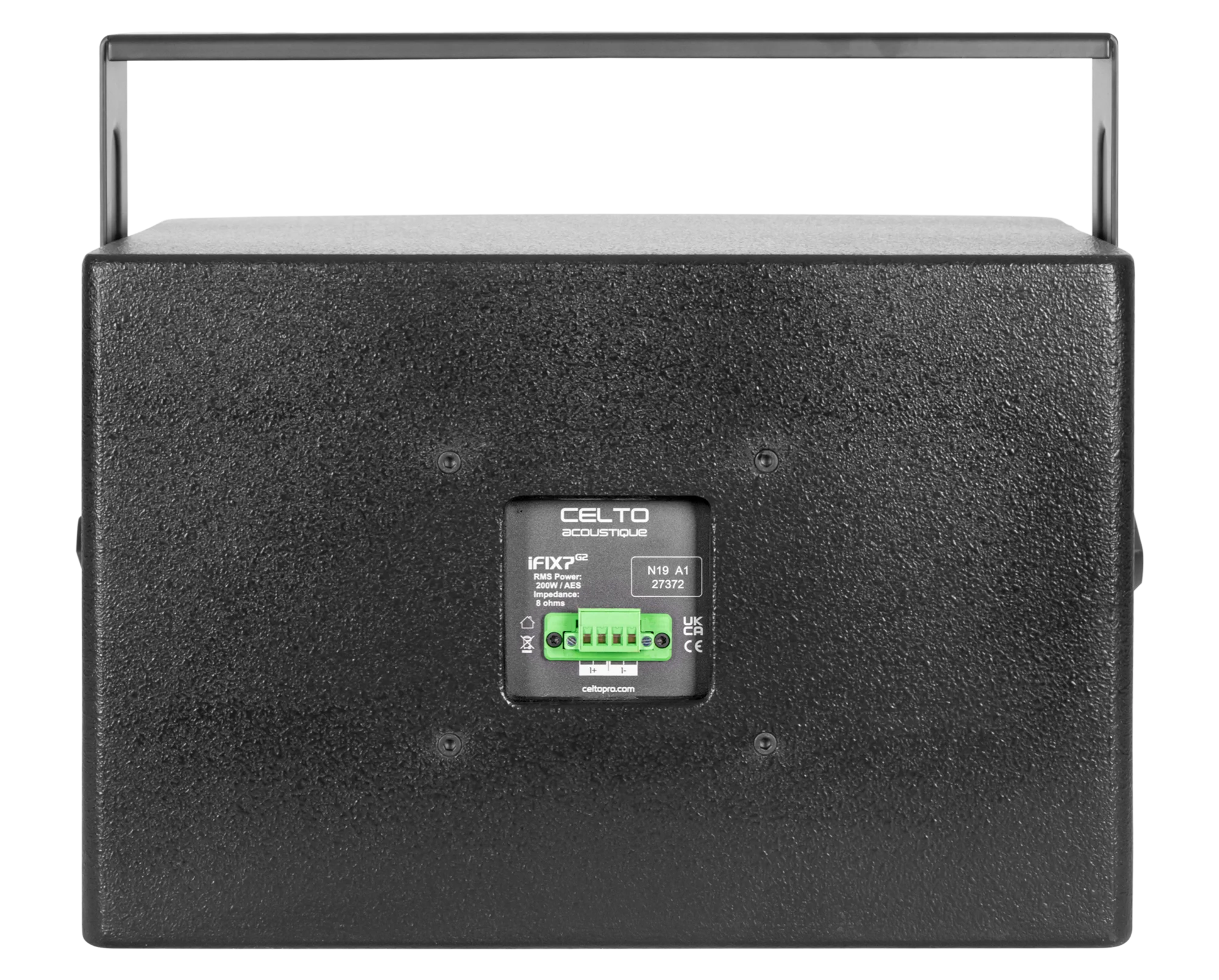

Connectivity	PHOENIX MSTBV 2.5/4-GF-5.08 4 pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD)	246 x 370 x 268 mm
Speaker Weight	10 kg
Shipping information	12 kg 390 x 330 x 510 mm
Accessories	CCA-MA (mounting adapter) WMBRKT20 (wall mount bracket) Rust-Free Aluninum grill
