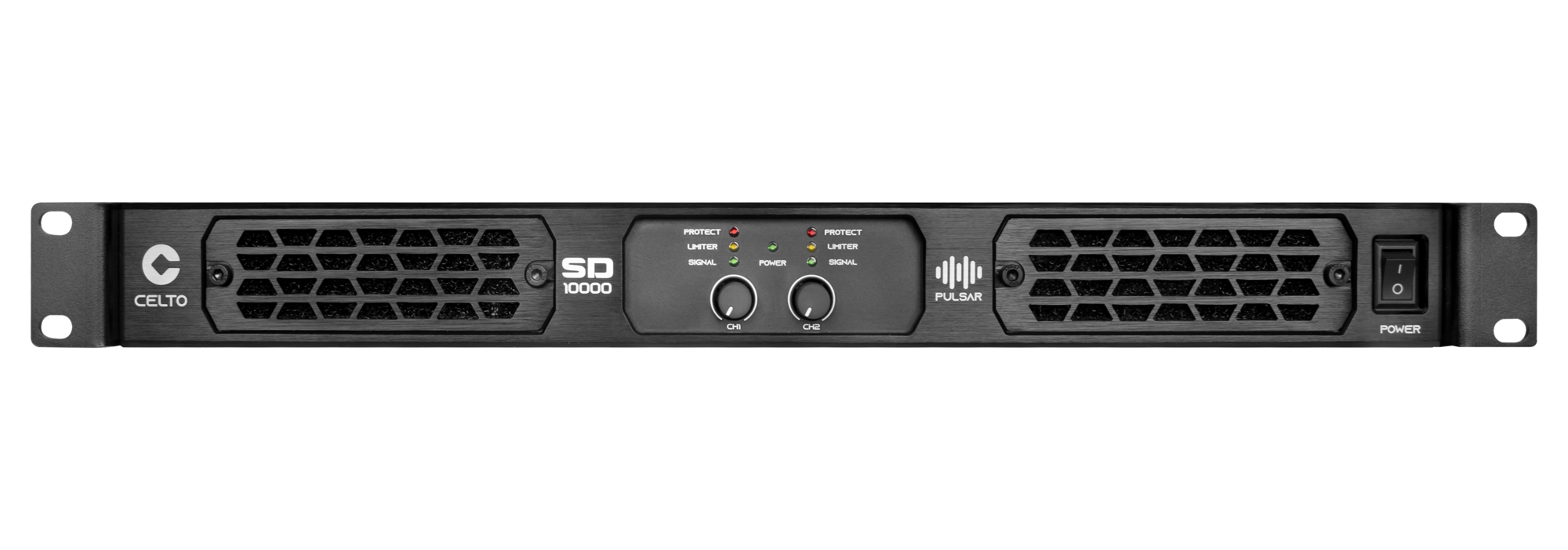

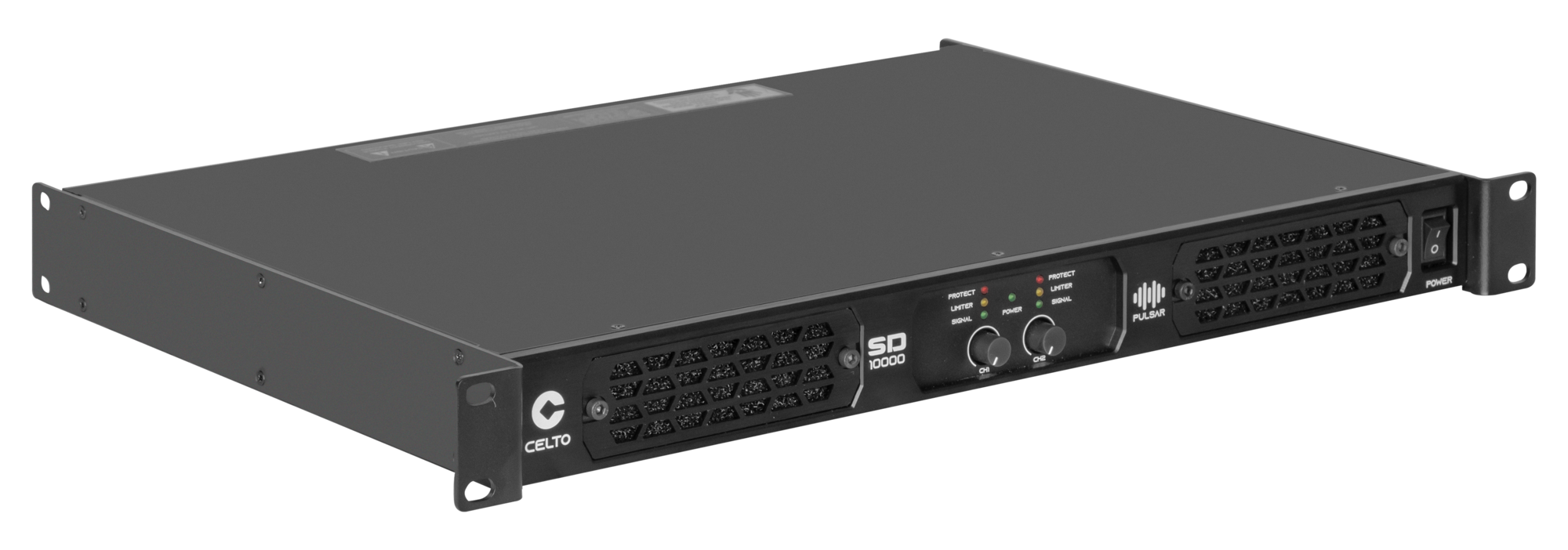

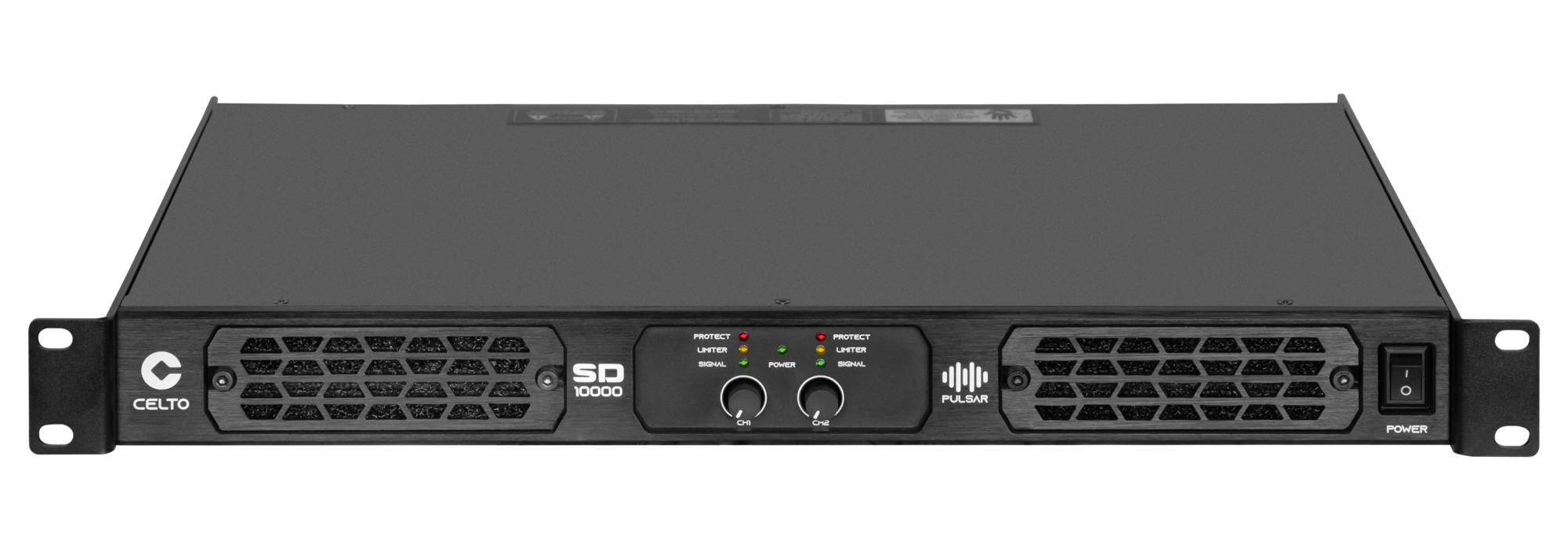

SD10000
10 kW Stereo. Pure Domination.
Description
Stereo flagship monster—the CELTO SD10000 commands 2x 2800W 8Ω /5000W 4Ω for ultimate system headroom. Built for the largest line arrays and sub arrays in touring and installation. Extended chassis (326 mm) and 8 kgWeight reflect massive internal reserves. Same premium preamp, protection, and NEUTRIK connectivity as series.When nothing less than maximum stereo powerWill do. The SD10000 turns amplification into domination.
Key Features
- 2x 2800W 8Ω / 2x 5000W 4Ω – flagship stereo authority
- 4th-gen high-current Class D for relentless headroom
- Studio-grade circuitWith MUSE® capacitors and low distortion
- Extended chassis (8 kg) for extreme power handling
- Full protections and NEUTRIK I/O for demanding tours
Applications
Installation
Sound Architecture
Portable
Professional sound, on demand
Touring
Engineered to endure
Technical specifications
| Channels | 2 |
| RMS Power 8Ω (per ch., EIA 1 kHz 1% THD) | 2800W |
| RMS Power 4Ω (per ch.) | 5000W |
| RMS Power 2Ω (per ch.) | 5300W |
| Bridge 8Ω | 1x 10000W |
| Bridge 4Ω | 1x 10600W |
| Frequency Response (-1 dB) | 5 – 20 000 Hz |
| Typical THD | < 0.03 % at 1W / < 0.09 % at half power |
| Signal to Noise Ratio (A-weighted) | > 108 dB |
| Crosstalk (1 kHz) | > 75 dB |
| Slew Rate | > 60 V/µs |
| Damping Factor (8Ω) | > 800 (internal) |
| Voltage Gain | 34 dB (50 times voltage) |
| Input Impedance | 20 kΩ balanced |
| Preamp | Ultra-low noise and distortion circuit with MUSE® Fine Gold capacitors and TrueRMS JFET VCA limiters |
| Output Stage / Class | Proprietary High-Speed High-Current 4th generation discrete Class D (92% efficiency) |
| Power Supply | Switch mode with active PFC (Universal AC input from 90 to 260V) |
| Cooling | Temperature regulated long life brush-less fans, front to back airflow |
| Power Connector | SEETRONIC PowerCon |
| Input Connectors | 4x Balanced NEUTRIK XLR |
| Output Connectors | 4x NEUTRIK SpeakON NL4MP |
| Dimensions (W×H×D) mm | 482×45×326 (1U) |
| Weight Net | 8 kg |
| series shortname | sseries |
