SQ8800

Quad Mastery. Touring Tough.

Installation

Portable

Touring Amplifiers S series

Where to buy

Description

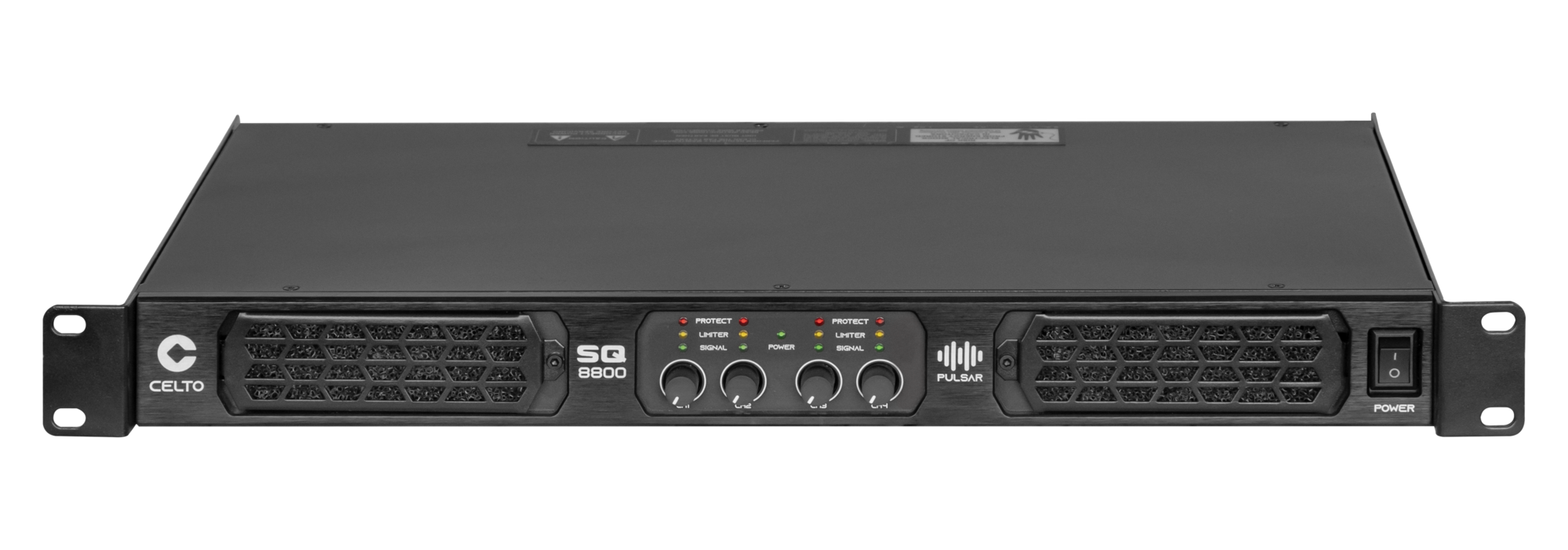

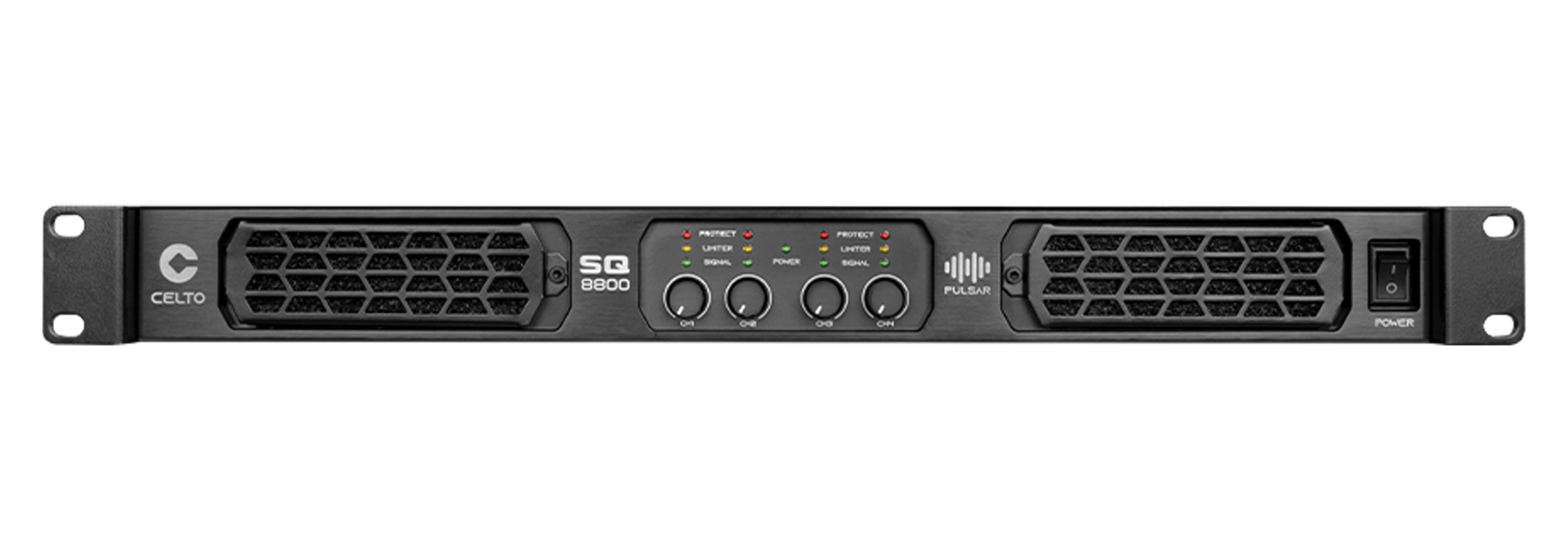

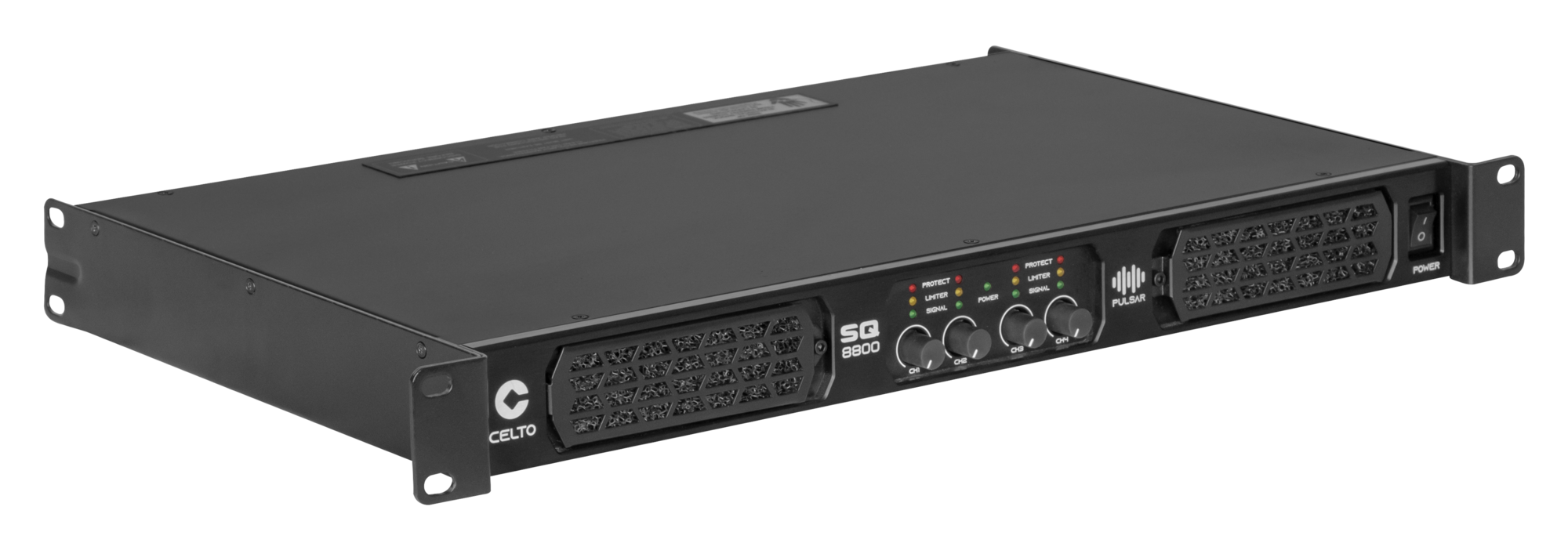

Quad-channel touring precision—the CELTO SQ8800 offers 4 × 1300W 8Ω /2200W 4Ω With refined control for critical applications. Designed for line arrays, multi-zone systems, and high-fidelity reinforcement. Higher slew rate (>60 V/µs) and damping (>800) deliver lightning transients and grip. MUSE® preamp and J-FET limiters preserve dynamicsWithout aggression. Robust SMPSWith multiple transformers handles extreme loads effortlessly. NEUTRIK connectors throughout for professional-grade reliability. At 6 kg, it combines brute forceWith touring practicality. The SQ8800 brings flagship performance to quad configurations.

Key Features

4 × 1300W 8Ω / 4x2200W 4Ω in compact 6 kg 1U chassis
4th-gen discrete Class DWith >60 V/µs slew rate for lightning transients
Studio-grade preampWith MUSE® Fine Gold capacitors for pristine audio
LLC PULSAR SMPSWith active PFC and multiple transformers for stability
NEUTRIK XLR/SpeakON connectors and comprehensive protections

Applications

Installation Sound Architecture

Portable Professional sound, on demand

Touring Engineered to endure

Technical specifications

Channels	4
RMS Power 8Ω (per ch., EIA 1 kHz 1% THD)	1300W
RMS Power 4Ω (per ch.)	2200W
RMS Power 2Ω (per ch.)	2000W
Bridge 8Ω	2x 4400W
Bridge 4Ω	2x 4000W
Frequency Response (-1 dB)	5 – 20 000 Hz
Typical THD	< 0.03 % at 1W / < 0.09 % at half power
Signal to Noise Ratio (A-weighted)	> 107 dB
Crosstalk (1 kHz)	> 75 dB
Slew Rate	> 60 V/µs
Damping Factor (8Ω)	> 800 (internal)
Voltage Gain	34 dB (50 times voltage)
Input Impedance	20 kΩ balanced
Preamp	Ultra-low noise and distortion circuit with MUSE® Fine Gold capacitors and TrueRMS JFET VCA limiters
Output Stage / Class	Proprietary High-Speed High-Current 4th generation discrete Class D (92% efficiency)
Power Supply	Switch mode with active PFC (Universal AC input from 90 to 260V)
Cooling	Temperature regulated long life brush-less fans, front to back airflow
Power Connector	SEETRONIC PowerCon

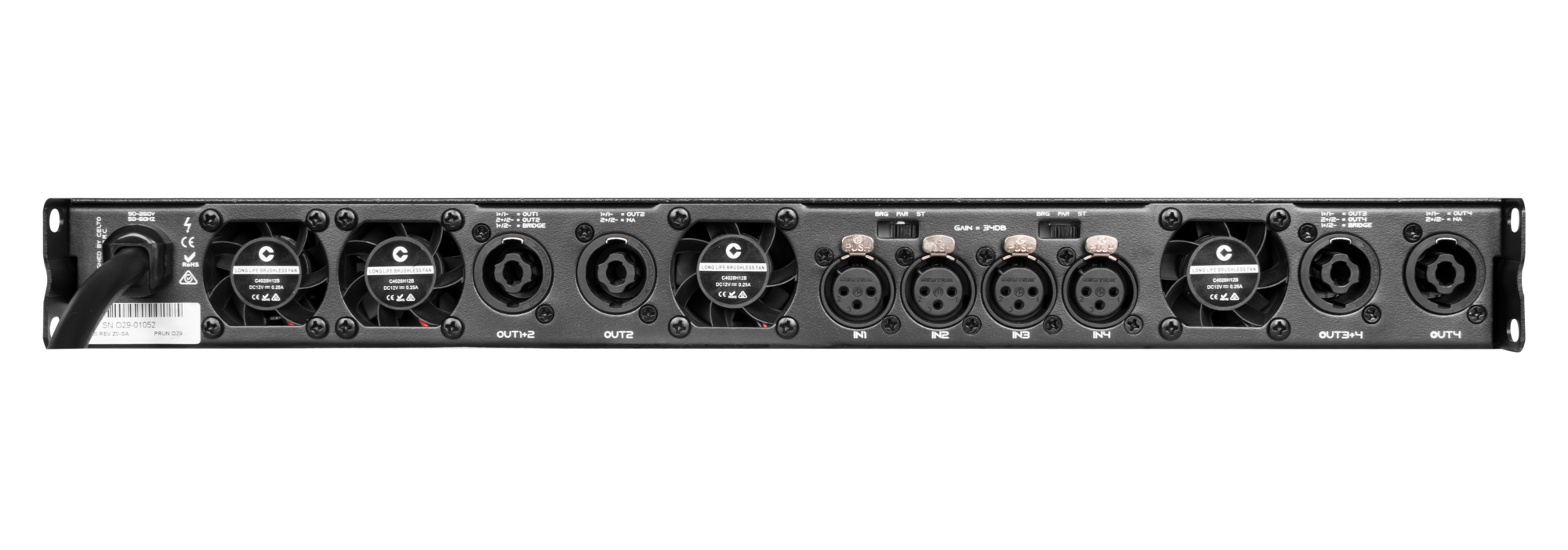

Input Connectors	4x Balanced NEUTRIK XLR
Output Connectors	4 ×NEUTRIK SpeakON NL4MP
Dimensions (W×H×D) mm	482×45×281 (1U)
Weight Net	6 kg
series shortname	sseries

Product files

Name	Category	Type	Size
CELTO_SQ8800_A0_20250721_WEB_CAD CELTO_SQ8800_A0_20250721_WEB_CAD	CELTO_SQ8800_A0_20250721_WEB_CAD	PDF	49.8 KiB	Download
CELTO_SQ8800_A0_20250721_WEB_CAD CELTO_SQ8800_A0_20250721_WEB_CAD	CELTO_SQ8800_A0_20250721_WEB_CAD	DWG	762.3 KiB	Download
